Description

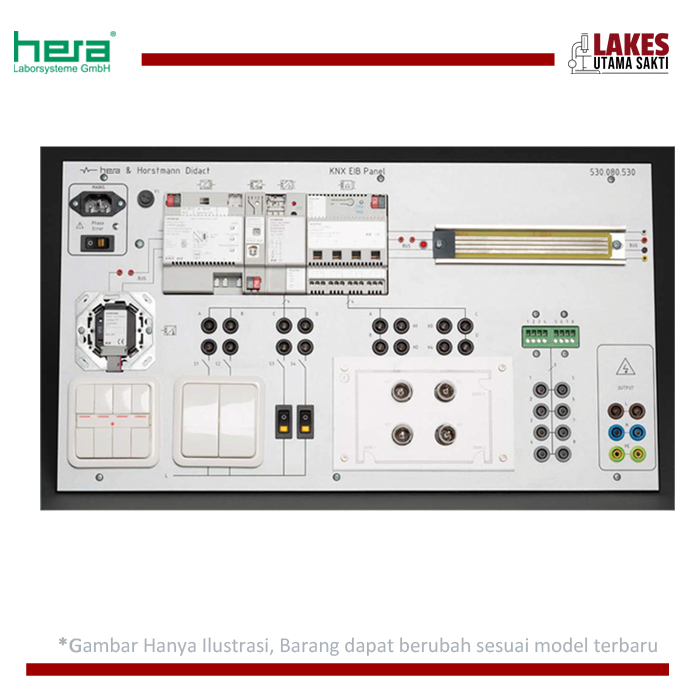

“Universal training system to the „European Installation Bus(EIB)“ with integrated basic components. The system could be enhanced by adding components to the head rail or by connecting extra component panels. The bus lines are connected with 2mm measuring leads and the load circuits with 4mm safety leads. Dimensions: 532 x 297mm (W x H).

Following Components are Integrated:
• Power Supply with Choke
• EIB Interface USB
• 4x Binary Input
• 4x Switching Actuator
• Bus-Coupler UP
• Tactile Sensor, 4fold with LED Indication
• Bus Detector, LED
• 2x Pushbutton
• 2x Control Button
• 4x Lamps, Load Simulation with Templates
• Head Rail for Additional Components COMPONENT PANELS TO KNX EIB INSTALLATION BUS Modular training system to „European Installation Bus“. Each component is integrated on an individual component panel and could either be used as individual training system or as enhancement to the KNX EIB Panel. The bus lines are connected with 2mm measuring leads and the load circuits with 4mm safety leads. “
